The SK Bowling Company has been building Paint Spray Booths since 1983.

We are proud to say that our product is one of the very few paint booths "MADE IN THE USA" that carries the ETL Listing Label. We are a world class, regional manufacturer of spray booths and custom ventilation systems. Our Titan Air Make Up Systems and LDPI Lighting Fixtures are the finest components available and also USA Manufactured. All of our replacement parts are available locally to insure minimal interruption in your operation.

Our Paint Booths and Mixing Rooms are ETL Listed. This means that our products are fabricated, constructed, and installed to meet or exceed all Federal, State, and Local Building Codes and NFPA 33 requirements. This has been verified by Intertek Testing Services, an accepted and approved 3rd party testing service.

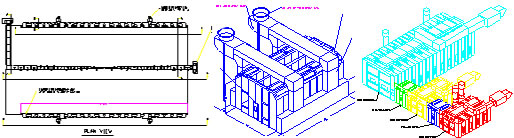

Industrial Manufacturing Paint Spray Booth Systems



Industrial Manufacturing Paint Spray Booth Systems
18’ wide by 60’ long by 16’ high inside

19’6” wide by 60’6” long by 19’ high outside Down Draft, Drive Through, Side Exhaust Plenums, Pressure type Paint Spray Booth, Fabricated of 18 gauge galvanized steel.

Sixty (60) 36 watt 48: Fluorescent 4 tube LDPI Front Access Light Fixtures complete with Color Rendering Lamps.

Four(1) 30” diameter Tubeaxial Fan with aluminum non-sparking blades, with 5 hp motor, adjustable drive, belts, and service disconnect.

UL Approved Dry Chemical Fire Suppression System.

Specifications:
  • ETL listed

  • Custom designed to fit your location

  • Custom engineered for you
  • Factory installation
  • Permits Applied for and Secured

  • Fire suppression systems
  • Internal electrical power wiring of booth
  • Concrete work
  • 4-tube lights standard
  • Direct factory service
  • 24 month parts warranty
Options:
  • Two Direct Fired Heated Air Make Up Systems and Roll up Door in Middle to configure 2 booths or one booth
  • Two Speed Fans, VFD Drives, Touch Screen Display
  • Gas Piping & Regulators
  • Painted Inside and Out
  • Concrete Pit Work
  • Turn Key Installation
  • Attached Mixing Room
  • Roll Up Doors
  • Parts Rack
  • Wider, Longer, Higher, Smaller

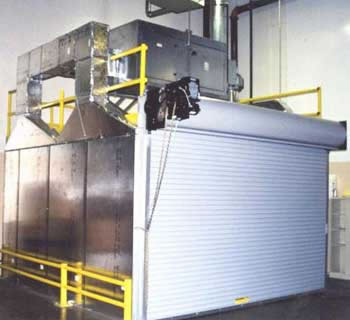

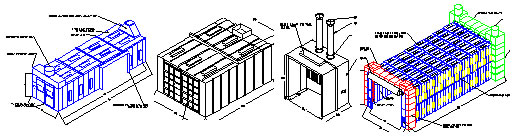

Custom Designed Paint Spray Booth for Marine, Woodworking and Small Parts Applications

Above, left to right:
Marine; Woodworking; Small Parts; Marine (60’ X 300’X 60’)

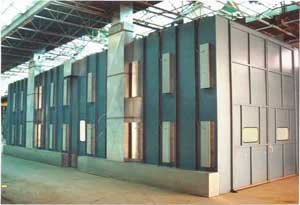

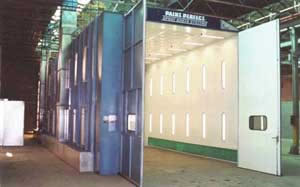

Custom Designed Paint Spray Booth for Plant Ventilation, Military and Transportation Applications

Above, left to right:
Plant Ventilation; Military; Transportation Service Center



Fabric Heat Set Room, Curing Fabric @ 230F

Above: Fabric Heat Set Room, Curing Fabric @ 230°F



  Click here to purchase your replacement filters online.
