Applications/Photos


At SK Bowling, we can meet your needs for a variety of Applications. Click on any application listed below to read more about how we can bring solutions to your needs:





Automotive Applications


For more information on our Paint Spray Booths, please click here.

Automotive Paint Spray Booth Applications  Automotive Paint Spray Booth Applications

Specifications:
  • ETL listed

  • Custom designed to fit your location

  • Custom engineered for you
  • Factory installation
  • Permits Applied for and Secured

  • Fire suppression systems
  • Internal electrical power wiring of booth
  • Concrete work
  • 4-tube lights standard
  • Direct factory service
  • 24 month parts warranty
Options:
  • Drive Through
  • Direct Fire Heated Air Make Up
  • Gas Piping & Regulators
  • Two Speed Fan & Heater
  • Painted Inside and Out
  • Concrete Pit Work
  • Turn Key Installation
  • Attached Mixing Room
  • Roll Up Doors
  • Parts Rack
  • Wider, Longer, Higher, Smaller

Body Shop Applications


For more information on our Paint Spray Booths, please click here.

Body Shop Paint Spray Booth Applications  Body Shop Paint Spray Booth Applications

Specifications:
  • ETL listed

  • Custom designed to fit your location

  • Custom engineered for you
  • Factory installation
  • Permits Applied for and Secured

  • Fire suppression systems
  • Internal electrical power wiring of booth
  • Concrete work
  • 4-tube lights standard
  • Direct factory service
  • 24 month parts warranty
Options:
  • Drive Through
  • Direct Fire Heated Air Make Up
  • Gas Piping & Regulators
  • Two Speed Fan & Heater
  • Painted Inside and Out
  • Concrete Pit Work
  • Turn Key Installation
  • Attached Mixing Room
  • Roll Up Doors
  • Parts Rack
  • Wider, Longer, Higher, Smaller

Car Dealership Prep Workstations

For more information on our Prep Workstations, please click here.

Car Dealership Prep Workstations   Car Dealership Prep Workstations

Specifications:
  • ETL listed

  • Custom designed to fit your location

  • Factory installation
  • Permits Applied for and Secured
  • Fire suppression systems
  • Internal electrical power wiring of booth
  • Concrete work
  • 24 month parts warranty

Industrial Applications

Industrial Applications Paint Spray Booths

For more information on our Industrial Applications,
please click here.

Custom Industrial Booth to paint hospital beds.
Raised floor booth with detached mixing room

Specifications:
  • ETL listed

  • Custom designed to fit your location

  • Custom engineered for you
  • Factory installation
  • Permits Applied for and Secured

  • Fire suppression systems
  • Internal electrical power wiring of booth
  • Concrete work
  • 4-tube lights standard
  • Direct factory service
  • 24 month parts warranty

Marine Applications


Custom Built Yacht Manufacturer
Marine Applications Air Make Up Systems by Titan Marine Applications Air Make Up Systems by Titan

Marine Applications Air Make Up Systems by Titan

Marine Applications Air Make Up Systems by Titan
For more information on our Air Make-Up Systems, please click here.


Our direct fired air make-up systems (by Titan Air) incorporate advanced components necessary for energy efficient, long term air quality. The direct fired burner offers 100% thermal efficiency, as opposed to 80% (nominal) efficiency for an indirect fired unit.

You can go from a spray mode of 70˚ to a curing temperature of 160˚ for a curing cycle in a matter of seconds. These units are simple to operate and easy to maintain. Overnight delivery of replacement parts from Wisconsin.

Pictured above are photos of a 300” x 125’ fiberglass spraying operation.  The entire building is a spray booth, and the ventilation system (including the building heating system and evaporative cooling) was designed, engineered, and installed by SK Bowling.


NASCAR


NASCAR Team Application - Model DD 1424-9 SENASCAR Team Application - Model DD 1424-9 SE
shown with Model MR 0824-9 Mixing Room

14’ wide by 26’ long by 10’ high inside.  14’4” wide by 26’4” long by 11’ high outside Down Draft, Side Exhaust, Paint Spray Booth, Fabricated of 18 gauge galvanized steel.  Sixteen (16) 36 watt 48: Fluorescent 4 tube LDPI Front Access Light Fixtures complete with Color Rendering Lamps.

One(1) 34” diameter Tubeaxial Fan with aluminum non-sparking blades, with 5 hp motor, adjustable drive, belts, and service disconnect.  UL Approved Dry Chemical Fire Suppression System.

For more information on our Side Exhaust and other Paint Spray Booths, please click here.


School Bus Painting


School Bus Painting and Outside Applications Paint Spray Booths
School Bus Painting and Outside Applications Paint Spray Booths
School Bus Painting and Outside Applications Paint Spray Booths
For more information on our Outside Applications, please click here.



Shown above is our Model DDDT 2060-20 FS Paint Spray Booth.  20’ wide by 60’ long by 16’ high inside.  22’ wide by 60’4” long by 20’ high outside Down Draft, FREE STANDING Pressure type Paint Spray Booth, Fabricated of 18 gauge galvanized steel.

Thirty-six (36) 36 watt 48: Fluorescent 4 tube LDPI Front Access Light Fixtures complete with Color Rendering Lamps.  Two 48” diameter Tubeaxial Fan with aluminum non-sparking blades, with 5 hp motors, adjustable drive, belts, and service disconnect.

UL Approved Dry Chemical Fire Suppression System.


Options:
  • Drive Through
  • Direct Fire Heated Air Make Up
  • Gas Piping & Regulators
  • Two Speed Fan & Heater
  • Painted Inside and Out
  • Turn Key Installation
  • Attached Mixing Room
  • Roll Up Doors
  • Parts Rack
  • Wider, Longer, Higher, Smaller

Textile Applications

Textile Applications Paint Spray Booths

Fabric Heat Set Room
Curing Fabric @ 230°F

Specifications:
  • ETL listed
  • Custom designed to fit your location
  • Custom engineered for you
  • Factory installation
  • Permits Applied for and Secured
  • Fire suppression systems
  • Internal electrical power wiring of booth
  • Concrete work
  • 4-tube lights standard
  • Direct factory service
  • 24 month parts warranty

For more information on our Custom Textile Applications, please click here.


Truck Applications


Truck Applications
Truck Paint Spray Booth Applications Truck Paint Spray Booth Applications

Truck Paint Spray Booth Applications

Truck Paint Spray Booth Applications
For more information on our Paint Spray Booths, please click here.


Specifications:
  • ETL listed

  • Custom designed to fit your location

  • Custom engineered for you
  • Factory installation
  • Permits Applied for and Secured

  • Fire suppression systems
  • Internal electrical power wiring of booth
  • Concrete work
  • 4-tube lights standard
  • Direct factory service
  • 24 month parts warranty
Options:
  • Shown with Two Direct Fired Heated Air Make Up Systems and Roll up Door in Middle to configure 2 booths or one booth
  • Gas Piping & Regulators
  • Two Speed Fan & Heater
  • Painted Inside and Out
  • Concrete Pit Work
  • Turn Key Installation
  • Attached Mixing Room
  • Roll Up Doors
  • Parts Rack
  • Wider, Longer, Higher, Smaller

Woodworking Applications


Model CD1012-8
Woodworking shop for spraying cabinets
Model CD1012-8  - Woodworking shop for spraying cabinets Model CD1012-8  - Woodworking shop for spraying cabinets
For more information on our Paint Spray Booths, please click here.



10’ wide by 12’ long by 8’ high inside.

10’4” wide by 22’4” long by 8’2 high outside Cross Draft Paint Spray Booth, Fabricated of 18 gauge galvanized steel.

Six (6) 36 watt 48: Fluorescent 4 tube LDPI Rear Access Light Fixtures complete with Color Rendering Lamps.

One(1) 24” diameter Tubeaxial Fan with aluminum non-sparking blades, with 2 hp motor, adjustable drive, belts, and service disconnect.

UL Approved Dry Chemical Fire Suppression System.

Specifications:
  • ETL listed

  • Custom designed to fit your location

  • Custom engineered for you
  • Factory installation
  • Permits Applied for and Secured

  • Fire suppression systems
  • Internal electrical power wiring of booth
  • Concrete work
  • 4-tube lights standard
  • Direct factory service
  • 24 month parts warranty
Options:
  • Direct Fire Heated Air Make Up
  • Gas Piping & Regulators
  • Painted Inside and Out
  • Concrete Pit Work
  • Turn Key Installation
  • Attached Mixing Room
  • Parts Rack
  • Wider, Longer, Higher, Smaller

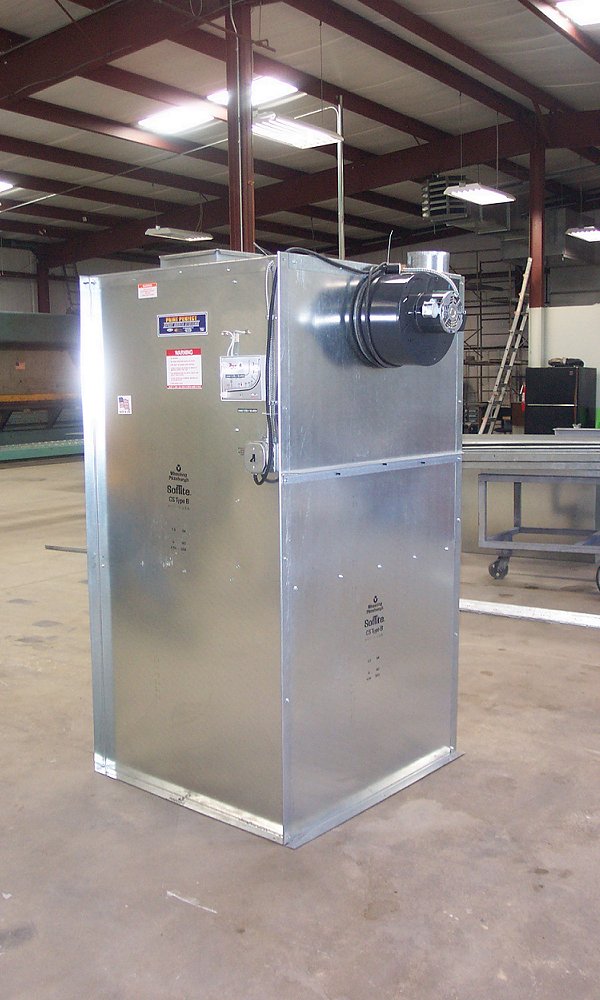

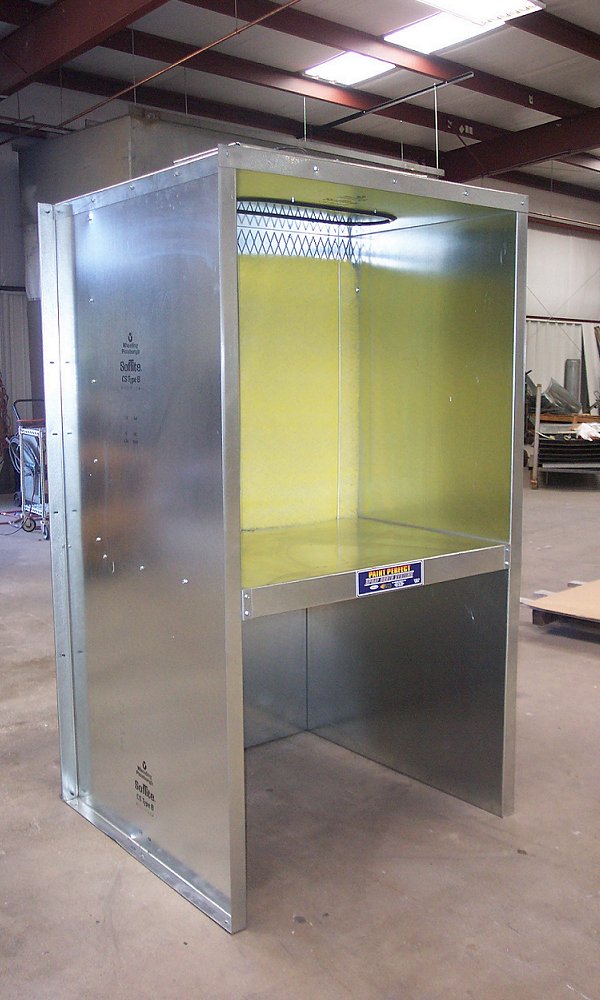

Small Parts Booth for the University of Nebraska Fine Arts Dept


Click on photos for full-size view:
Small Parts Booth for the University of Nebraska Fine Arts Dept Small Parts Booth for the University of Nebraska Fine Arts Dept
